Hyperledger的區塊結構：交易是怎么存入區塊的 如何存入LevelDB

之前學習比特幣和以太坊，必先學習其區塊結構，當時在銀行做Hyperledger相關項目時，我卻對結構很忽略，只關心智能合約，居然也能初步掌握并開始項目相關的開發。這說明超級賬本的區塊屬性其實比較弱，重要的是智能合約的屬性。性能也不錯。從這個意義上講Hyperledger用來做存證是大材小用的。

Transactions are collected into blocks/batches on the ordering service first. Blocks are cut either when the BatchSize is met, or when BatchTimeout elapses (provided a non-empty block).

也就是說，滿足這2個條件，區塊生成了：

交易數量夠了

超時時間到了

所以Hyperledger的區塊生成不是定時的，高峰時間，區塊生成速度明顯加快

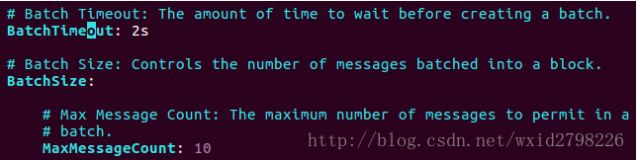

configtx.yaml in the common/configtx/tool/ directory for more info on the block-cutting criteria.

The Block type definition in protos/common/common.proto

和以太坊一樣，hyperledger的區別，也有區塊號、指向前一個區塊的指針、指向數據的指針，因為沒有挖礦，頭部簡潔了很多。

// This is finalized block structure to be shared among the orderer and peer

// Note that the BlockHeader chains to the previous BlockHeader, and the

BlockData hash is embedded

// in the BlockHeader.  This makes it natural and obvious that the Data is included in the hash, but

// the Metadata is not.

message Block {

}

// BlockHeader is the element of the block which forms the block chain

// The block header is hashed using the configured chain hashing algorithm

// over the ASN.1 encoding of the BlockHeader

message BlockHeader {

}

message BlockData {

}

message BlockMetadata {

}

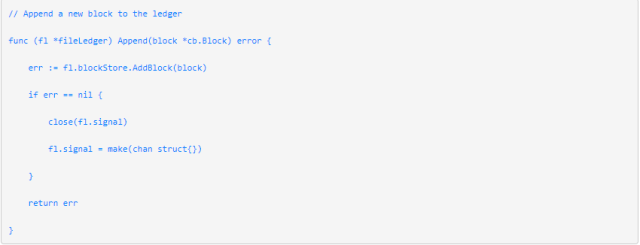

These blocks are stored locally to disk on every ordering service node along with a LevelDB to index these blocks by number – see orderer/ledger/file

作者：鄭澤洲

原文鏈接：

http://www.blockchainbrother.com/article/893
